R1512 240 14、R1512 310 14、R1512 390 14、加强型密封R1512 440 14

2022-10-02/ 123 次浏览/ STAR螺母


螺母型号	额定载荷额定动载C(N)	额定静载C0(N)	速度1)v max (m/min)	规格	尺寸(mm)														重量
				规格	尺寸(mm)														重量
					d1	d2	D1	D5	孔图	D6	D7	L	L3	L4	L5	L10	S3)	ϕ	m
				d0xPxDW-i	d1	d2	f9	D5	孔图	D6	D7	L	L3	L4	L5	L10	S3)	(°)	(kg)
R153223004	2200	2800	15	8x2.5Rx1.588-3	7.5	6.3	16	30	BB7	23	3.4	16	13	3	-	3	M4	0	0.06
R153246024	3800	5800	30	12x5Rx2-3	11.4	9.9	24	40	BB7	32	4.5	28	12	8	8	8	M6	55	0.12
R153249014	2500	3600	60	12x10Rx2-2	11.4	9.9	24	40	BB7	32	4.5	33	12	10.5	10.5	10.5	M6	55	0.13
R151201024	12300	16100	30	16x5Rx3-4	15	12.9	28	53	BB7	40	6.6	38	15	10	11.5	11.5	M6	53	0.24
R151204014	9600	12300	60	16x10Rx3-3	15	12.9	28	53	BB7	40	6.6	45	15	15	15	15	M6	180	0.25
R151206014	6300	7600	96	16x16Rx3-2	15	12.9	33	58	BB7	45	6.6	45	15	15	15	15	M6	50	0.42
R151211014	14300	21500	30	20x5Rx3-4	19	16.9	33	58	BB7	45	6.6	40	15	10	12.5	12.5	M6	56	0.31
R151217014	9100	12100	120	20x20Rx3.5-2	19.3	16.7	38	63	BB7	50	6.6	57	20	18.5	18.5	18.5	M6	60	0.63
R151221014	15900	27200	30	25x5Rx3-4	24	21.9	38	63	BB7	50	6.6	45	20	10	12.5	12.5	M6	60	0.44
R151224014	15700	27000	60	25x10Rx3-4	24	21.9	38	63	BB7	50	6.6	64	20	16	22	22	M6	60	0.53
R151228014	10100	15100	150	25x25Rx3.5-2	24	21.4	48	73	BB7	60	6.6	70	25	22.5	22.5	22.5	M6	48	1.13
R151231014	21600	40000	23	32x5Rx3.5-4	31	28.4	48	73	BB7	60	6.6	48	20	10	14	14	M6	60	0.64
R155231004	21600	40000	23	32x5Lx3.5-4	31	28.4	48	73	BB7	60	6.6	48	20	10	14	14	M6	59	0.64
R151234014	31700	58300	47	32x10Rx3.969-5	31	27.9	48	73	BB7	60	6.6	77	20	16	28.5	28.5	M6	168	0.87
R151237014	13500	21800	94	32x20Rx3.969-2	31	27.9	56	80	BB7	68	6.6	64	20	22	22	22	M6	60	1.14
R151239014	13400	22000	150	32x32Rx3.969-2	31	27.9	56	80	BB7	68	6.6	88	20	34	34	34	M6	60	1.44
R151241014	29100	64100	19	40x5Rx3.5-5	39	36.4	56	80	BB7	68	6.6	54	20	10	17	17	M8x1	65	0.87
R155241004	29100	64100	19	40x5Lx3.5-5	39	36.4	56	80	BB7	68	6.6	54	20	10	17	17	M8x1	65	0.87
R151244014	50000	86400	38	40x10Rx6-4	38	33.8	63	95	BB7	78	9	70	25	16	22.5	22.5	M8x1	57	1.53
R155244004	50000	86400	38	40x10Lx6-4	38	33.8	63	95	BB7	78	9	70	25	16	22.5	22.5	M8x1	57	1.53
R151247014	37900	62800	75	40x20Rx6-3	38	33.8	63	95	BB7	78	9	88	25	25	31.5	31.5	M8x1	180	1.77
R151249014	25500	40300	150	40x40Rx6-2	38	33.8	72	110	BB7	90	11	102	40	31	31	31	M8x1	49	3.77
R151251014	32000	81300	15	50x5Rx3.5-5	49	46.4	68	98	BB7	82	9	54	25	10	14.5	14.5	M8x1	67	1.23
R151254014	79700	166500	30	50x10Rx6-6	48	43.8	72	110	BB7	90	11	90	30	16	30	30	M8x1	61	2.44
R151257014	47900	87900	60	50x20Rx6.5-3	48	43.4	85	125	BB7	105	11	92	30	25	31	31	M8x1	180	3.94
R151259014	32100	55800	120	50x40Rx6.5-2	48	43.4	85	125	BB7	105	11	109	30	39.5	39.5	39.5	M8x1	60	4.42
R151264014	88800	214300	24	63x10Rx6-6	61	56.8	85	125	BB7	105	11	90	30	16	30	30	M8x1	65	2.94
R151267014	53200	112100	48	63x20Rx6.5-3	61	56.4	95	140	BB7	118	14	92	30	25	31	31	M8x1	190	4.45
R151269014	36900	74300	95	63x40Rx6.5-2	61	56.4	95	140	BB7	118	14	109	30	39.5	39.5	39.5	M8x1	70	4.95
R151274014	108400	291700	19	80x10Rx6.5-6	78	73.3	105	150	BB7	125	14	95	30	16	32.5	32.5	M8x1	67	4.2
R151277024	262700	534200	30	80x20Rx12.7-6	76	67	125	180	BB7	152	18	170	50	25	60	60	M8x1	60	13.3

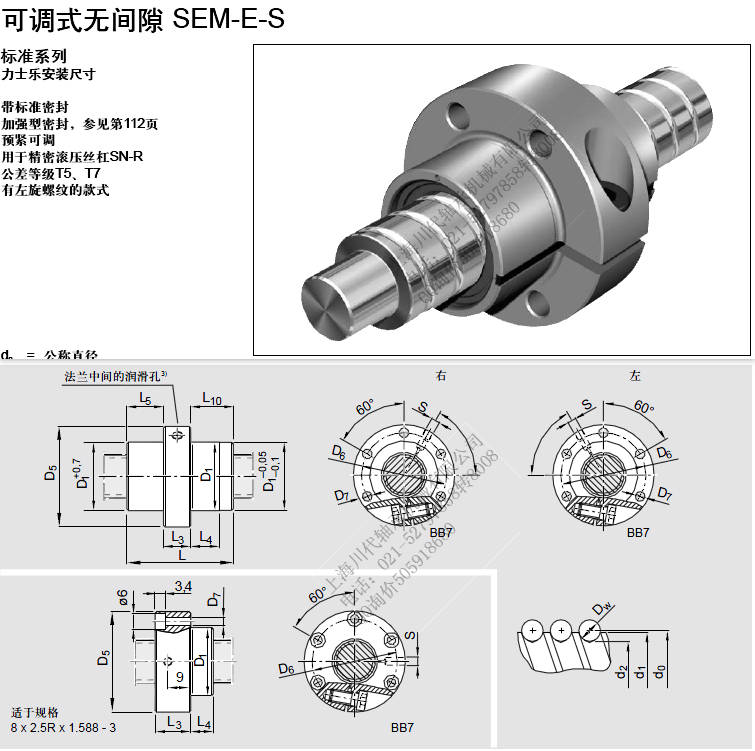

SEM-E-S 20 x 5R x 3-4 1 2 T7 R 82Z120 41Z120 1250 0 1d0 = 公称直径 P = 导程 (R = 右旋, L = 左旋) DW = 滚珠直径 i = 螺母内的螺旋圈数订购代码: 类别 B 规格 d0 x P x DW - i 8 x 2.5R x 1.588 - 3 部件号 R1532 230 04 额定载荷额定动载C (N) 2200 速度1)vmax(m/min)15 调整后的定位轴颈直径 D1额定静载C0(N) 2800 B 12 x 5R x 2 - 3 R1532 460 24 3800 5800 30 23.940 23.975C 12 x 10R x 2 - 2 R1532 490 14 2500 3600 60 23.940 23.975B 16 x 5R x 3 - 4 R1512 010 24 12300 16100 30 27.940 27.975C 16 x 10R x 3 - 3 R1512 040 14 9600 12300 60 27.940 27.975B 16 x 16R x 3 - 2 R1512 060 14 6300 7600 96 32.945 32.973A 20 x 5R x 3 - 4 R1512 110 14 14300 21500 30 32.935 32.970B 20 x 20R x 3.5 - 2 R1512 170 14 9100 12100 120 37.945 37.973A 25 x 5R x 3 - 4 R1512 210 14 15900 27200 30 37.935 37.970A 25 x 10R x 3 - 4 R1512 240 14 15700 27000 60 37.935 37.970B 25 x 25R x 3.5 - 2 R1512 280 14 10100 15100 150 47.945 47.973A 32 x 5R x 3.5 - 4 R1512 310 14 21600 40000 23 47.935 47.970A 32 x 5L x 3.5 - 4 R1552 310 04 21600 40000 23 47.935 47.970A 32 x 10R x 3.969 - 5 R1512 340 14 31700 58300 47 47.935 47.970B 32 x 20R x 3.969 - 2 R1512 370 14 13500 21800 94 55.941 55.969B 32 x 32R x 3.969 - 2 R1512 390 14 13400 22000 150 55.941 55.969A 40 x 5R x 3.5 - 5 R1512 410 14 29100 64100 19 55.931 55.966B 40 x 5L x 3.5 - 5 R1552 410 04 29100 64100 19 55.931 55.966A 40 x 10R x 6 - 4 R1512 440 14 50000 86400 38 62.931 62.966B 40 x 10L x 6 - 4 R1552 440 04 50000 86400 38 62.931 62.966A 40 x 20R x 6 - 3 R1512 470 14 37900 62800 75 62.941 62.969A 40 x 40R x 6 - 2 R1512 490 14 25500 40300 150 71.941 71.969B 50 x 5R x 3.5 - 5 R1512 510 14 32000 81300 15 67.931 67.966B 50 x 10R x 6 - 6 R1512 540 14 79700 166500 30 71.931 71.966B 50 x 20R x 6.5 - 3 R1512 570 14 47900 87900 60 84.936 84.964B 50 x 40R x 6.5 - 2 R1512 590 14 32100 55800 120 84.936 84.964B 63 x 10R x 6 - 6 R1512 640 14 88800 214300 24 84.926 84.961C 63 x 20R x 6.5 - 3 R1512 670 14 53200 112100 48 94.936 94.964C 63 x 40R x 6.5 - 2 R1512 690 14 36900 74300 95 94.936 94.964C 80 x 10R x 6.5 - 6 R1512 740 14 108400 291700 19 104.926 104.961B 80 x 20R x 12.7 - 62) R1512 770 24 262700 534200 30 124.931 124.959最小(mm) 最大(mm) 15.953 15.987 1) 参见第101页转速特征值d0• n和第124页临界转速ncr 2) 螺母80x20x12.7-6配用滚珠丝杠最大长度可达2500mm，带预紧。力士乐安装尺寸带标准密封加强型密封，参见第112页预紧可调用于精密滚压丝杠SN-R 公差等级T5、 T7 有左旋螺纹的款式可调式无间隙 SEM-E-S 标准系列螺母
