R0530115101、R053014510鸡眼轴承

Version

Withsheetsteelhousing.

SmallestBallTransferUnit.

Forgeneralapplications.

Size

Partnumber

Loadcapacities (N)

Dimensions(mm)

Weight

(kg)

m

dyn. C

stat.C0

dw

D

D1

h

H

a

b

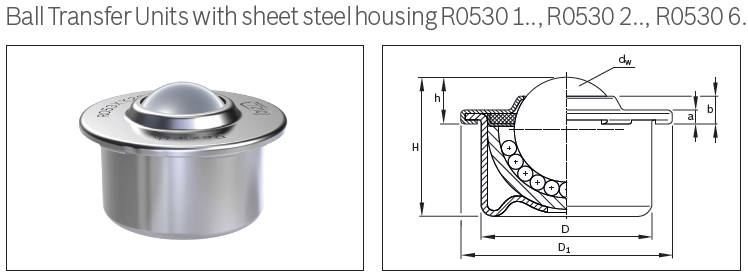

R05301..KU-B..-MFG

Coverandhousinggalvanized.

Ballsmadefromantifrictionbe

aringsteel

1.3505.

Withfeltseal

8

R0530108101)

130

250

7.938

12.6±0.055

17.0

4.8±0.15

11.2

1.9

3.2

0.007

12

R0530112101)

250

500

12.000

18.0±0.055

23.3

7.4±0.15

15.4

2.1

4.4

0.018

15

R0530115101)

500

1000

15.875

24.0±0.065

31.0

9.5±0.20

21.5

2.5

6.1

0.038

R0530116101)2)

22

R053012210

1300

2500

22.225

36.0±0.080

45.0

9.8±0.20

29.5

2.9

5.7

0.132

R0530123102)

30

R053013010

2500

5000

30.162

45.0±0.080

55.0

13.8±0.30

37.5

3.7

7.9

0.265

R0530131102)

45

R053014510

6000

12000

44.450

62.0±0.095

75.0

19.0±0.40

53.7

4.2

10.5

0.720

R0530146102)

R05302..KU-C..-MFG

Allpartsgalvanized.

Ballsmadefromcorrosion-resistantsteel

1.3541/1.4034

Withfeltseal

8

R0530208101)

100

200

7.938

12.6±0.055

17.0

4.8±0.15

11.2

1.9

3.2

0.007

12

R0530212101)

180

350

12.000

18.0±0.055

23.3

7.4±0.15

15.4

2.1

4.4

0.018

15

R0530215101)

370

700

15.875

24.0±0.065

31.0

9.5±0.20

21.5

2.5

6.1

0.038

R0530216101)2)

22

R053022210

970

1800

22.225

36.0±0.080

45.0

9.8±0.20

29.5

2.9

5.7

0.132

R0530223102)

30

R053023010

1900

3000

30.162

45.0±0.080

55.0

13.8±0.30

37.5

3.7

7.9

0.265

R0530231102)

45

R053024510

4500

7000

44.450

62.0±0.095

75.0

19.0±0.40

53.7

4.2

10.5

0.720

R0530246102)

R05306..KU-N.. -MFG

Allpartsmadefromcorrosion

-resistantsteel.

Ballsmadefrom1.3541/1.4034.

Withfeltseal

8

R0530608001)

100

200

7.938

12.6±0.055

17.0

4.8±0.15

11.2

1.9

3.2

0.007

12

R0530612001)

180

350

12.000

18.0±0.055

23.3

7.4±0.15

15.4

2.1

4.4

0.018

15

R0530615001)3)

370

700

15.875

24.0±0.065

31.0

9.5±0.20

21.5

2.5

6.1

0.038

22

R0530622003)

970

1800

22.225

36.0±0.080

45.0

9.8±0.20

29.5

2.9

5.7

0.132

30

R0530630003)

1900

3000

30.162

45.±0.80

55.0

13.8±0.30

37.5

3.7

7.9

0.265

Technical data
Arrangement of the Ball
Transfer Units
How the Ball Transfer Units should be arranged depends on the undersurface of the conveyed
article. For articles with a uniform, smooth undersurface, such as boxes and cases, the distance
between the Ball Transfer Units is calculated simply by dividing the smallest edge length by 2.5.
Example:
Undersurface of the conveyed article = 500 x 1000 mm
Distance between Ball Transfer Units
Determining the load for
Ball Transfer Units
To determine the load for a Ball Transfer Unit, the weight of the conveyed article is divided by 3.
If the load ball height tolerances are well-correlated, it is possible, depending on the nature of
the conveyed article, to also perform the calculation based on the number of load-bearing Ball
Transfer Units.
