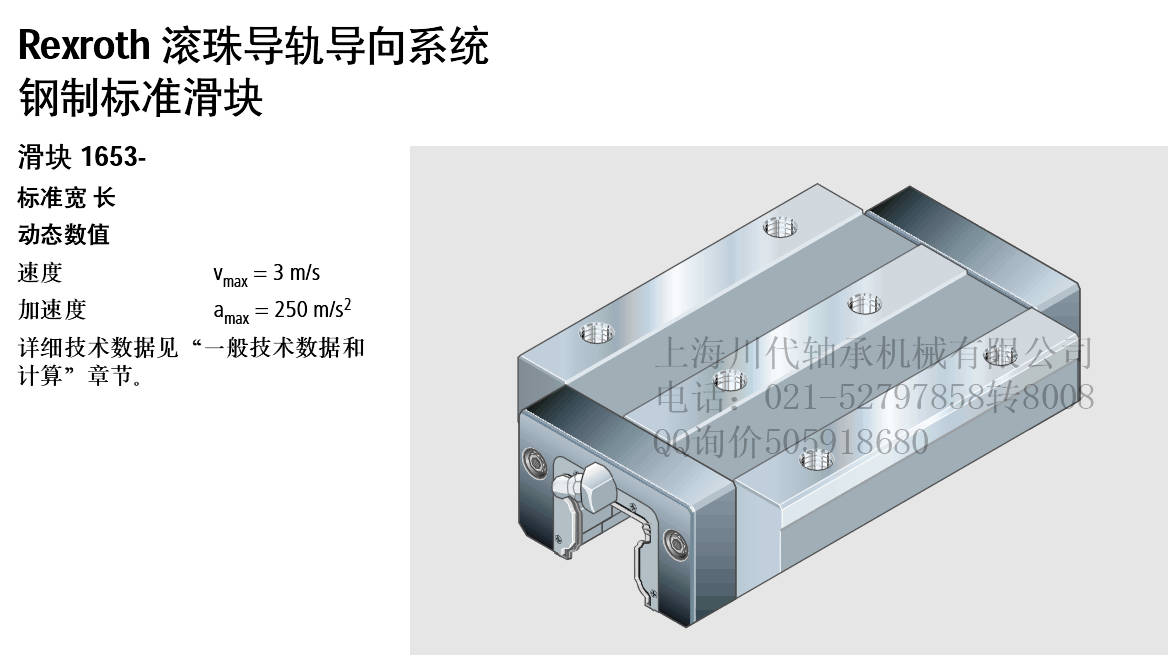

R1653-114-20、R1653-811-20、R1653-219-20镀硬铬滑块体
 | |||||
规格 | 精度! | 滑块!" 预紧! | |||
至大10µm 间隙 | 预紧 0.02C | 预紧 0.08C | 预紧 0.13C | ||
15 | N | R1653-194-20 | R1653-114-20 | ||
20 | UP | R1653-819-20 | R1653-829-20 | R1653-839-20 | |
SP | R1653-811-20 | R1653-821-20 | R1653-831-20 | ||
P | R1653-812-20 | R1653-822-20 | R1653-832-20 | ||
H | RR1653-893-20 | R1653-813-20 | R1653-823-20 | ||
N | R1653-894-20 | R1653-814-20 | R1653-824-20 | ||
25 | UP | R1653-219-20 | R1653-229-20 | R1653-239-20 | |
SP | R1653-211-20 | R1653-221-20 | R1653-231-20 | ||
P | R1653-212-20 | R1653-222-20 | R1653-232-20 | ||
H | R1653-293-20 | R1653-213-20 | R1653-223-20 | ||
N | R1653-294-20 | R1653-214-20 | R1653-224-20 | ||
30 | UP | R1653-719-20 | R1653-729-20 | R1653-739-20 | |
SP | R1653-711-20 | R1653-721-20 | R1653-731-20 | ||
P | R1653-712-20 | R1653-722-20 | R1653-732-20 | ||
H | R1653-793-20 | R1653-713-20 | R1653-723-20 | ||
N | R1653-794-20 | R1653-714-20 | R1653-724-20 | ||
35 | UP | R1653-319-20 | R1653-329-20 | R1653-339-20 | |
SP | R1653-311-20 | R1653-321-20 | R1653-331-20 | ||
P | R1653-312-20 | R1653-322-20 | R1653-332-20 | ||
H | R1653-393-20 | R1653-313-20 | R1653-323-20 | ||
N | R1653-394-20 | R1653-314-20 | R1653-324-20 | ||
45* | UP | R1653-419-20 | R1653-429-20 | R1653-439-20 | |
SP | R1653-411-20 | R1653-421-20 | R1653-431-20 | ||
P | R1653-412-20 | R1653-422-20 | R1653-432-20 | ||
H | R1653-493-20 | R1653-413-20 | R1653-423-20 | ||
N | R1653-494-20 | R1653-414-20 | R1653-424-20 | ||
 | ||||||||||||||||||||

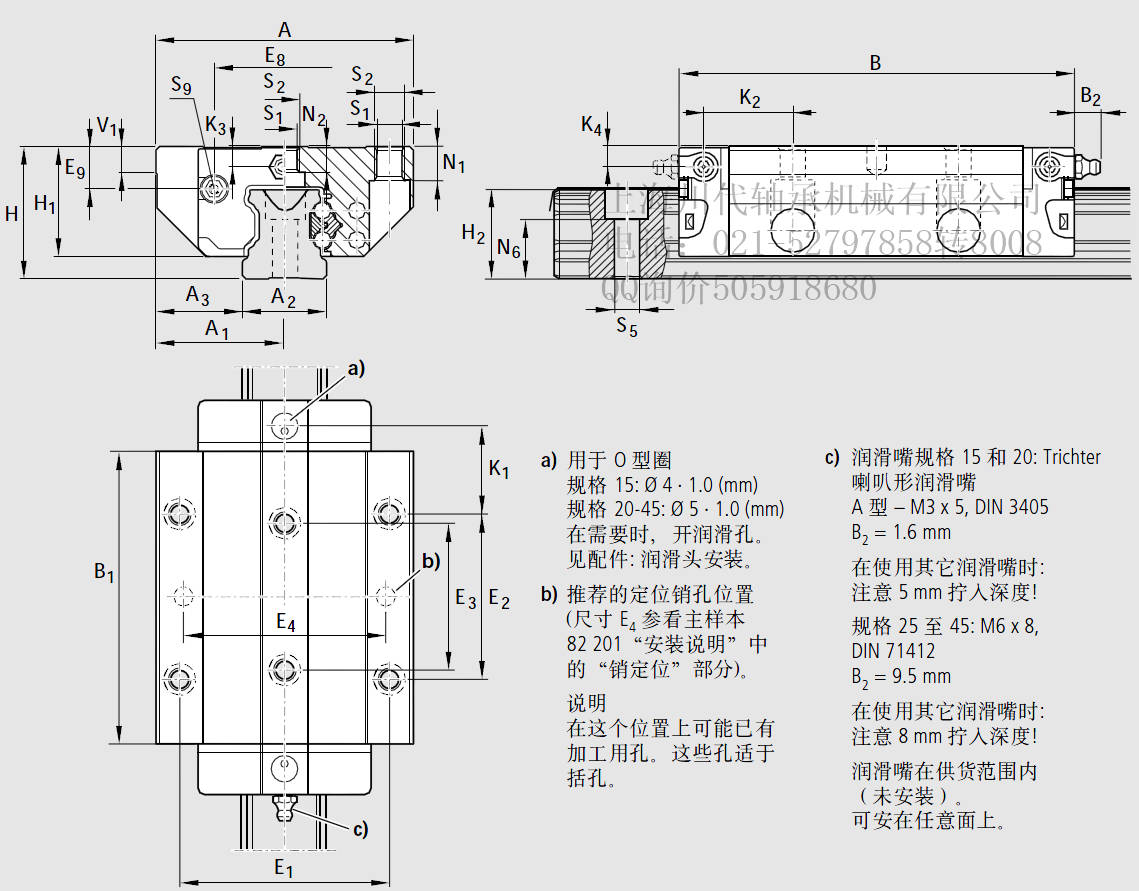

尺寸(mm) | ||||||||||||||||||||
规格 | A | A1 | A2 | A3 | B | B1 | H | H1 | H21) | H22) | V1 | E1 | E2 | E3 | E8 | E9 | K1 | K2 | K3 | K4 |
15 | 47 | 23.5 | 15 | 16.0 | 72.6 | 53.6 | 24 | 19.90 | 16.30 | 16.20 | 5.0 | 38 | 30 | 26 | 24.55 | 6.70 | 15.20 | 16.80 | 3.20 | 3.20 |
20 | 63 | 31.5 | 20 | 21.5 | 91.0 | 65.6 | 30 | 25.35 | 20.75 | 20.55 | 6.0 | 53 | 40 | 35 | 32.50 | 7.30 | 19.80 | 19.80 | 3.35 | 3.35 |
25 | 70 | 35.0 | 23 | 23.5 | 107.9 | 79.5 | 36 | 29.90 | 24.45 | 24.25 | 7.5 | 57 | 45 | 40 | 38.30 | 11.50 | 23.30 | 24.45 | 5.50 | 5.50 |
30 | 90 | 45.0 | 28 | 31.0 | 119.7 | 89.4 | 42 | 35.35 | 28.55 | 28.35 | 7.0 | 72 | 52 | 44 | 48.40 | 14.60 | 25.00 | 26.70 | 6.05 | 6.05 |
35 | 100 | 50.0 | 34 | 33.0 | 139.0 | 105.5 | 48 | 40.40 | 32.15 | 31.85 | 8.0 | 82 | 62 | 52 | 58.00 | 17.35 | 28.75 | 30.25 | 6.90 | 6.90 |
45 | 120 | 60 | 45 | 37.5 | 174.1 | 133.5 | 60 | 50.30 | 40.15 | 39.85 | 10.0 | 100 | 80 | 60 | 69.8 | 20.9 | 35.5 | 37.5 | 8.20 | 8.20 |
尺寸(mm) 重量 | C C0 动载 静载 | Mt Mt0 | ||||||||||||
ML 动载 | ML0 静载 | |||||||||||||
规格 | N1 | N2 | N6±0.5 | S1 | S2 | S5 | S9 | (kg) | 动载 | 静载 | ||||
15 | 5.2 | 4.4 | 10.3 | 4.3 | M5 | 4.4 | M2.5-3.5深 | 0.30 | 10000 20200 | 130 | 190 | 98 | 150 | |
20 | 7.7 | 5.2 | 13.2 | 5.3 | M6 | 6.0 | M3-5深 | 0.55 | 24400 35200 | 310 | 450 | 225 | 330 | |
25 | 9.3 | 7.0 | 15.2 | 6.7 | M8 | 7.0 | M3-5深 | 0.90 | 30400 45500 | 430 | 650 | 345 | 510 | |
30 | 11.0 | 7.9 | 17.0 | 8.5 | M10 | 9.0 | M3-5深 | 1.50 | 40000 57800 | 690 | 1000 | 495 | 715 | |
35 | 12.0 | 10.2 | 20.5 | 8.5 | M10 | 9.0 | M3-5深 | 2.25 | 55600 81000 | 1200 | 1740 | 830 | 1215 | |
45 | 15.0 | 12.4 | 23.5 | 10.4 | M12 | 14.0 | M4-7深 | 4.30 | 90400 128500 | 2440 | 3470 | 1700 | 2425 | |
部件号
特殊款式
精度等级H,预紧等级间隙10.02C
的滑块也可供货下列款式:
镀硬铬滑块体
-防腐CR:
部件号1653-..3-60
对额定动载荷和额定动转矩的说明
(见表)
额定动载荷和额定动转矩是以
100 000米行程为基准确定的。
实际中经常是以50000米行程为
基准。
在此情况下:
表格中的C, M[和M值乘以系
数1.26。
