​R1653-419-10、R1653-411-10、R1653-413-10

规格

精度!

至大10µm

间隙

滑块!"

预紧!

预紧

0.13C

预紧

0.02C

预紧

0.08C

45*

UP

R1653-419-10

R1653-429-10

R1653-439-10

SP

R1653-411-10

R1653-421-10

R1653-431-10

P

R1653-412-10

R1653-422-10

R1653-432-10

H

R1653-493-10

R1653-413-10

R1653-423-10

N

R1653-494-10

R1653-414-10

R1653-424-10

55

UP

R1653-519-10

R1653-529-10

R1653-539-10

SP

R1653-511-10

R1653-521-10

R1653-531-10

P

R1653-512-10

R1653-522-10

R1653-532-10

H

R1653-593-10

R1653-513-10

R1653-523-10

N

R1653-594-10

R1653-514-10

R1653-524-10

65

UP

R1653-619-10

R1653-629-10

R1653-639-10

SP

R1653-611-10

R1653-621-10

R1653-631-10

P

R1653-612-10

R1653-622-10

R1653-632-10

H

R1653-693-10

R1653-613-10

R1653-623-10

N

R1653-694-10

R1653-614-10

R1653-624-10

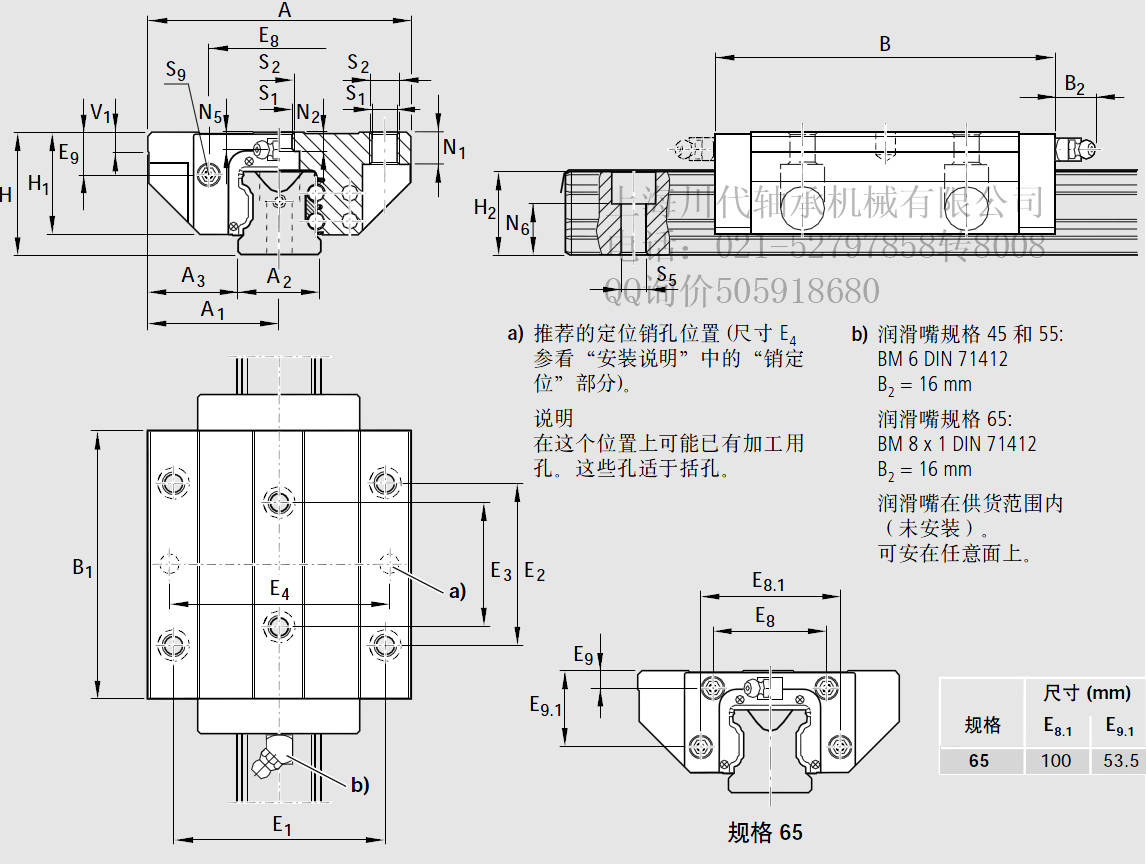

尺寸(mm)

规格

A

A1

A2

A3

B

B1

H

H1

H21)

H22)

V1

E1

E2

E3

E8

E9

N1

N2

45

120

60.0

45

37.5

170.0

133.5

60

50.0

40.15

39.85

10.0

100

80

60

69.8

20.9

15.0

12.4

55

140

70.0

53

43.5

200.0

155.5

70

57.0

48.15

47.85

12.0

116

95

70

80.0

22.3

18.0

13.5

65

170

85.0

63

53.5

243.0

194.6

90

76.0

60.15

59.85

15.0

142

110

82

76.0

11.0

23.0

14.0

ML

动载

ML0

静载

规格

N5

N6±0.5

S1

S2

S5

S9

动载

静载

动载

静载

45

8.0

23.5

10.5

M12

14

M4-7深

4.20

90400

128500

2440

3470

1700

2425

55

9.0

29.0

12.5

M14

16

M5-8泵

7.50

124200

170000

3950

5400

2630

3600

65

16.0

38.5

14.5

M16

18

M4-7深

14.15

163000

289000

6440

11420

4620

8190
