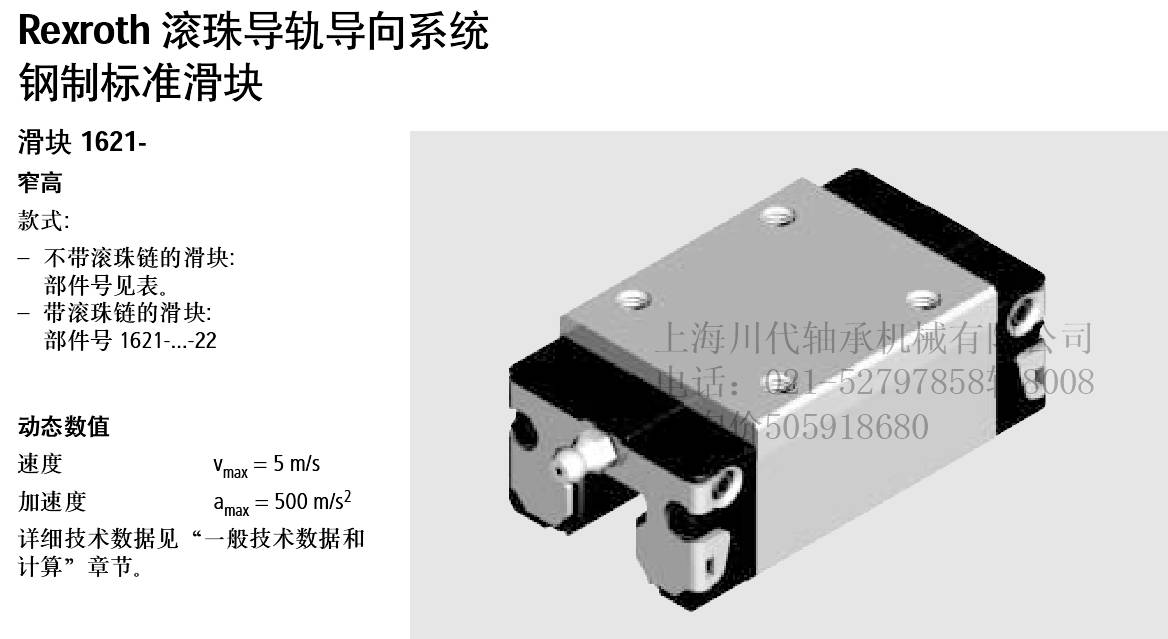

R1621-193-20、R1621-194-20、钢制标准滑块R1621-293-20

规格

精度!

滑块!"

预紧!

至大10µm

间隙

预紧

0.02C

预紧

0.08C

预紧

0.13C

15

P

R1621-112-20

R1621-122-20

R1621-132-20

H

R1621-193-20

R1621-113-20

R1621-123-20

N

R1621-194-20

R1621-114-20

R1621-124-20

25

P

R1621-212-20

R1621-222-20

R1621-232-20

H

R1621-293-20

R1621-213-20

R1621-223-20

N

R1621-294-20

R1621-214-20

R1621-224-20

30

P

R1621-712-20

R1621-722-20

R1621-732-20

H

R1621-793-20

R1621-713-20

R1621-723-20

N

R1621-794-20

R1621-714-20

R1621-724-20

35

P

R1621-312-20

R1621-322-20

R1621-332-20

H

R1621-393-20

R1621-313-20

R1621-323-20

N

R1621-394-20

R1621-314-20

R1621-324-20

45*

P

R1621-422-20

R1621-432-20

R1621-432-20

H

R1621-493-20

R1621-413-20

R1621-423-20

N

R1621-494-20

R1621-414-20

R1621-424-20

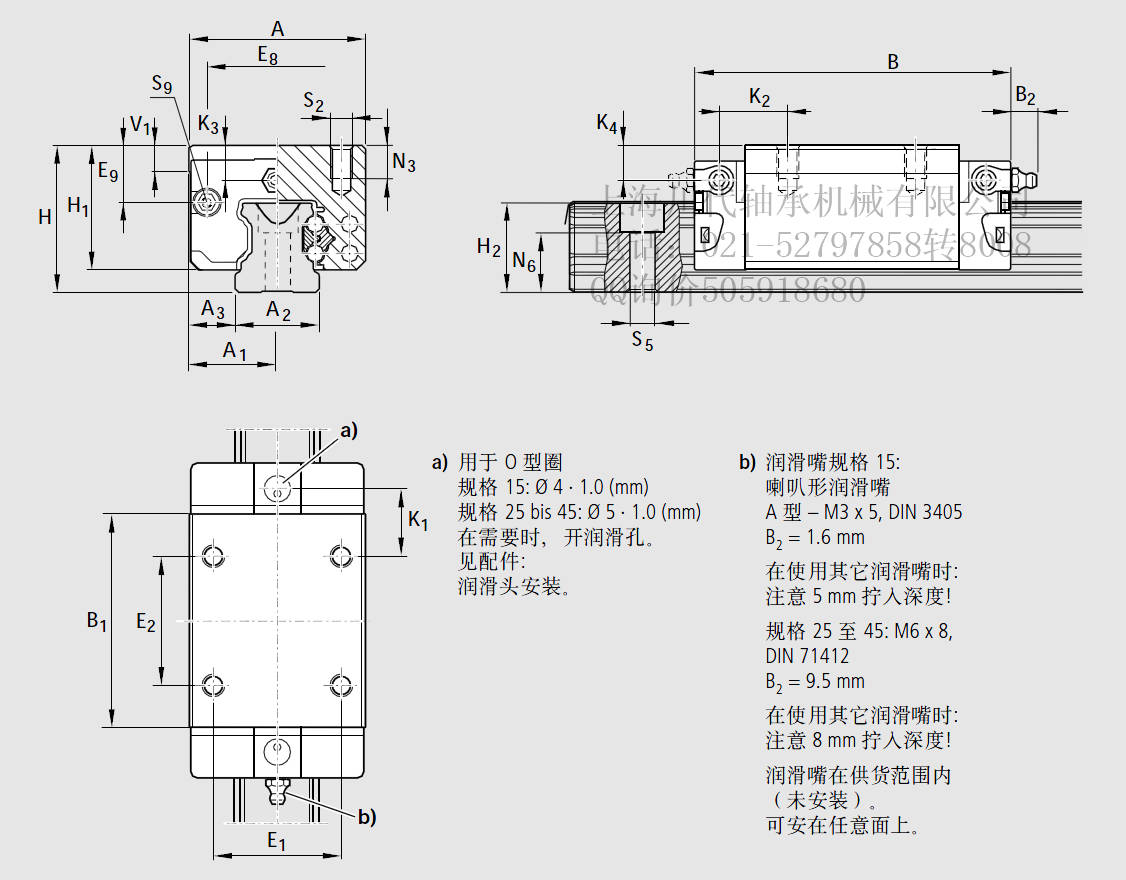

尺寸(mm)

规格

A

A1

A2

A3

B

B1

H

H1

H21)

H22)

V1

E1

E2

E8

E9

K1

K2

K3

K4

15

34

17

15

9.5

58.2

39.2

28

23.90

16.30

16.20

5.0

26

26

24.55

10.70

10.00

11.60

7.20

7.20

25

48

24

23

12.5

86.2

57.8

40

33.90

24.45

24.25

7.5

35

35

38.30

15.50

17.45

18.60

9.50

9.50

30

60

30

28

16.0

97.7

67.4

45

38.35

28.55

28.35

7.0

40

40

48.40

17.60

20.00

21.70

9.05

9.05

35

70

35

34

18.0

110.5

77.0

55

47.40

32.15

31.85

8.0

50

50

58.00

24.35

20.50

22.00

13.90

13.90

45

86

43

45

20.5

137.6

97.0

70

60.30

40.15

39.85

10.0

60

60

69.8

30.9

27.3

29.3

18.20

18.20
