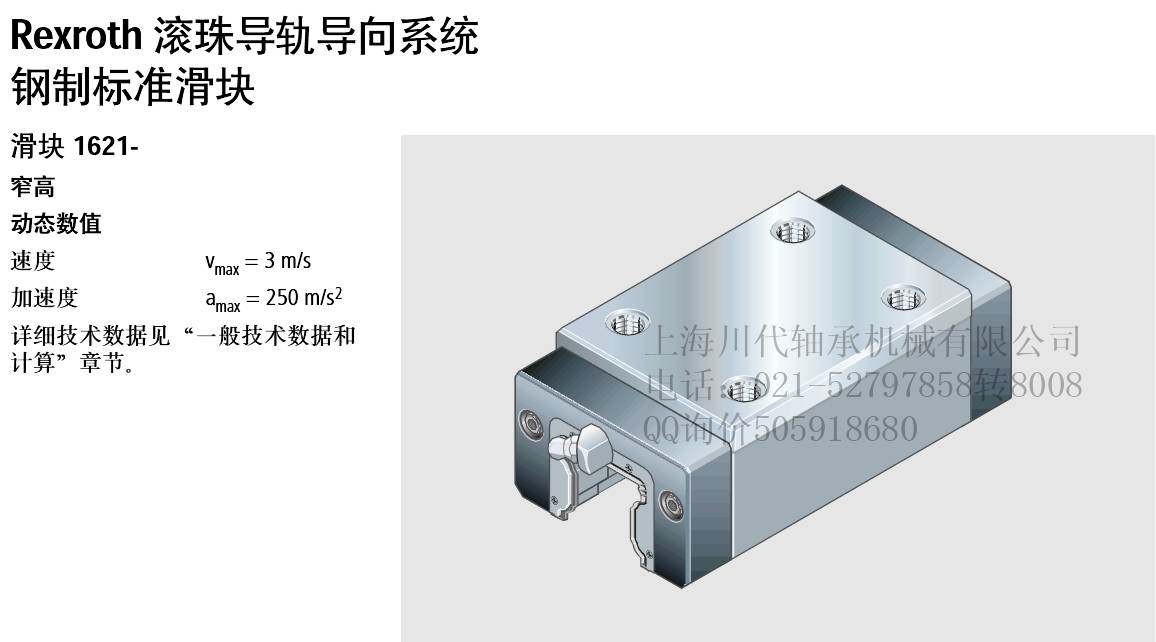

R1621-493-10、R1621-593-10、滑块窄高R1621-594-10

规格

精度!

滑块!"

预紧!

至大10µm

间隙

预紧

0.02C

预紧

0.08C

预紧

0.13C

45*

P

R1621-412-10

R1621-422-10

R1621-432-10

H

R1621-493-10

R1621-413-10

R1621-423-10

N

R1621-494-10

R1621-414-10

R1621-424-10

55

P

R1621-512-10

R1621-522-10

R1621-532-10

H

R1621-593-10

R1621-513-10

R1621-523-10

N

R1621-594-10

R1621-514-10

R1621-524-10

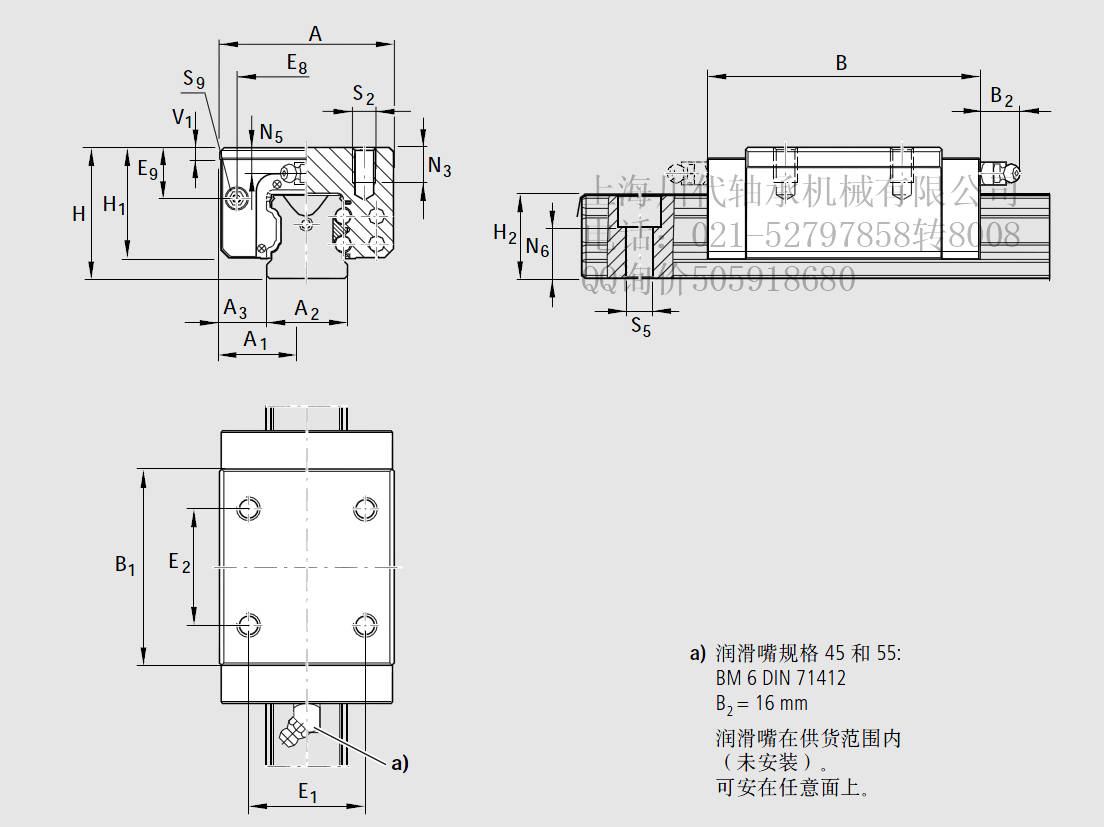

尺寸(mm)

规格

A

A1

A2

A3

B

B1

H

H1

H21)

H22)

V1

E1

E2

E8

E9

N3

45

86

43

45

20.5

133.0

97.0

70

60.0

40.15

39.85

10.0

60

60

69.8

30.9

18

55

100

50

53

23.5

159.0

115.5

80

67.0

48.15

47.85

12.0

75

75

80.0

32.3

19
